RUCKUS ICX 7750-48F

Enterprise-Class Aggregation/Core Switch

The Ruckus ICX 7750 switch provides the capabilities of a chassis with the flexibility and cost effectiveness of a stackable switch. Ruckus ICX 7750 is available in three models: the Ruckus ICX 7750-48F, ICX 7750-48C, and ICX 7750-26Q. The Ruckus ICX 7750-48F and ICX 7750-48C both offer 48 10 GbE ports (SFP+ and 10GBASE-T, respectively) and up to 12 40 GbE ports (six optional). The Ruckus ICX 7750-26Q offers up to 32 40 GbE QSFP+ ports (six optional).

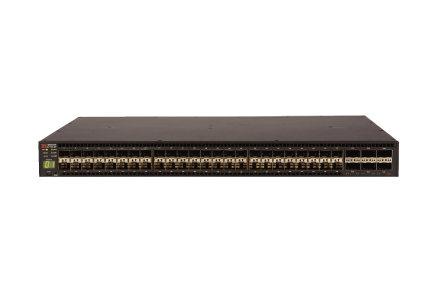

All models support stacking, which allows organizations to buy only the ports they need now and expand later by adding switches to the stack where and when they are needed. This eliminates the need for a forklift upgrade and helps avoid provisioning an underutilized, centralized chassis. The Ruckus ICX 7750-48F features 48 1/10 GbE SFP+ ports and 6 40 GbE QSFP+ ports that can each be split into 4×10 GbE SFP+ ports. The front panel also displays the unit stacking ID. Up to 12 Ruckus ICX 7750 switches can be stacked together using up to 12 fullduplex 40 Gbps standard QSFP+ stacking ports that provide an unprecedented maximum of 5.76 Tbps of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Up to 12 Ruckus ICX 7750 Switches can be stacked using up to 12 standard full-duplex 40 Gbps QSFP+ ports per switch, providing up to 5.76 Tbps of aggregated stacking bandwidth.

The Ruckus ICX 7750 features hot-swappable redundant power supplies (1+1) and fans (3+1), and an optional 6 40 GbE ports module that can be used for stacking or as additional 40 GbE data ports.


Signellent Technologies is among the most well-known Dealer in Bengaluru & Delhi NCR. Avail Ruckus ICX 7750-48F through Signellent Technologies the authorized and Certified Partner, Distributor, Vendor, service provider, wholesaler stockist, of Ruckus Gujarat, Tamil Nadu, Kolkata, Nashik & Ludhiana Contact us to avail best prices and discount on Ruckus ICX 7750-48F
