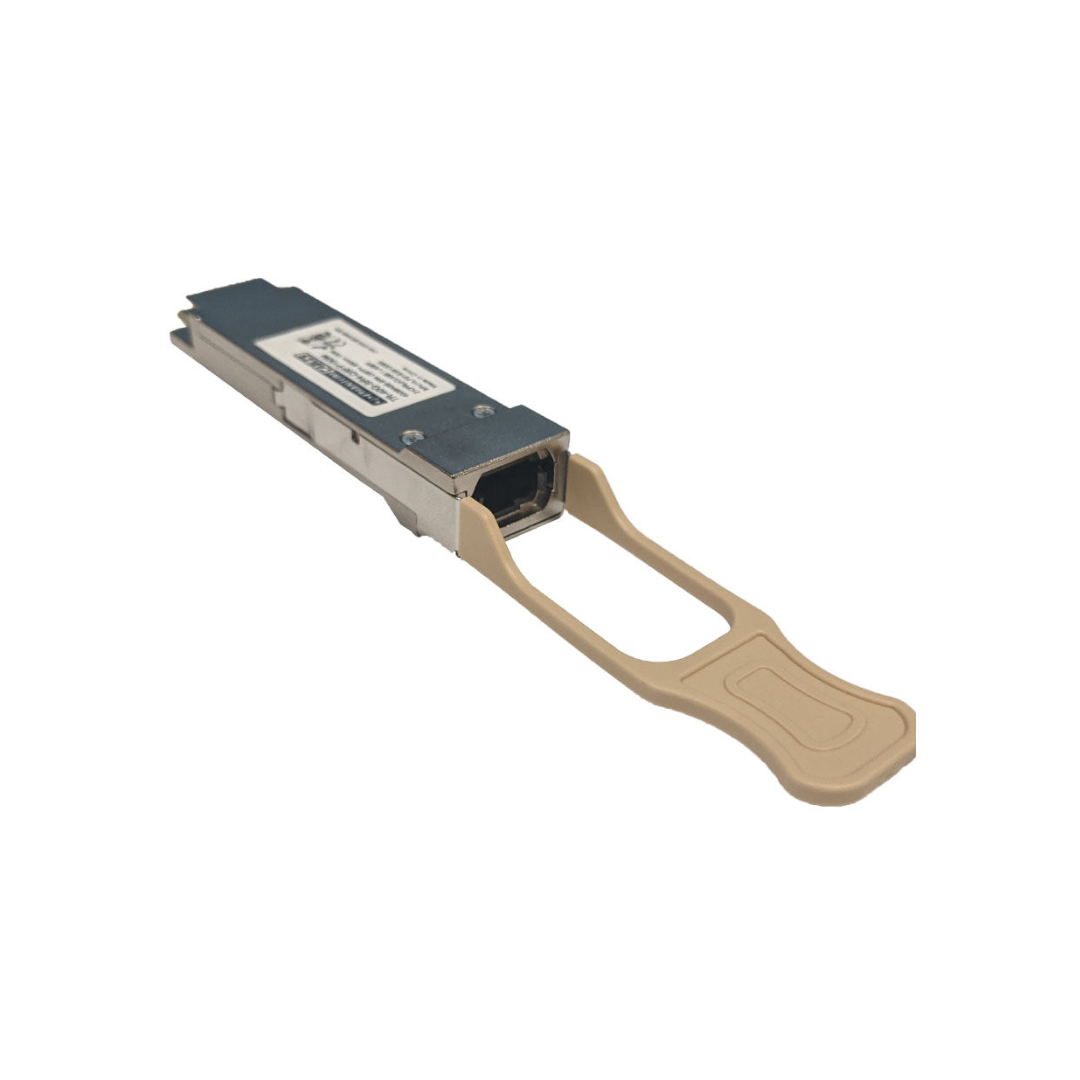

The Extreme Networks 40G-SR4-QSFP150M is a cutting-edge QSFP+ optical transceiver module engineered to deliver 40 Gigabit Ethernet connectivity over multimode fiber (MMF) for distances up to 150 meters. This module integrates four independent transmit and receive channels, each operating at 10.3125 Gbps, aggregating to a total bandwidth of 41.25 Gbps.
Designed in compliance with the IEEE 802.3ba 40GBASE-SR4 standard, the transceiver operates over an 850nm wavelength using a high-quality VCSEL laser transmitter and PIN photodiode receiver. It employs an MTP/MPO-12 connector, facilitating seamless integration with existing MMF infrastructures, particularly OM3 and OM4 fibers.
Key features include:
Support for up to 100 meters on OM3 and 150 meters on OM4 MMF.
Low power consumption (<1.2W), enhancing energy efficiency.
Hot-pluggable design, allowing for easy installation and replacement without network disruption.
Digital Diagnostic Monitoring (DDM) support for real-time performance monitoring.
Operating temperature range of 0?C to 70?C, suitable for standard commercial environments.
