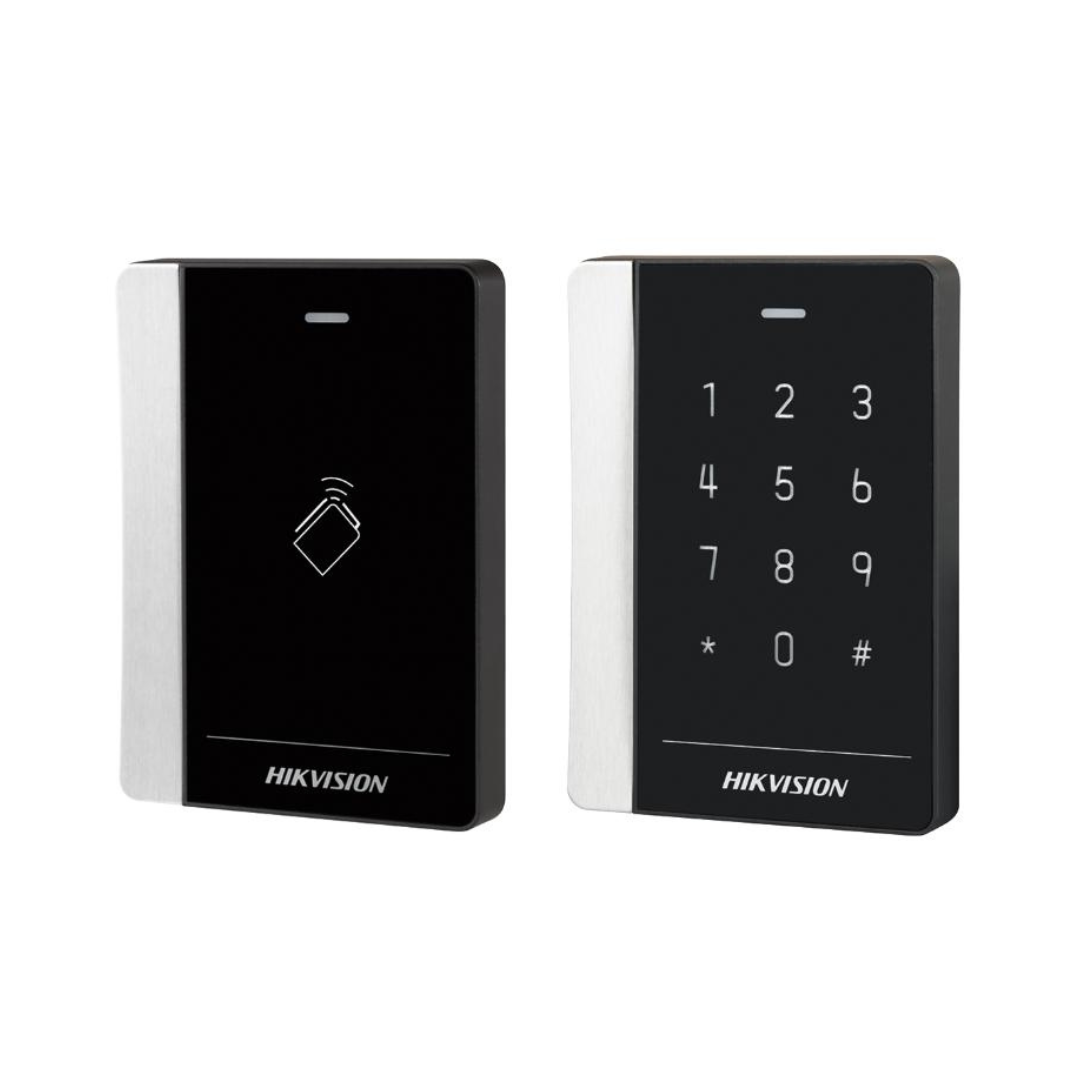

Hikvision DS-K1102 Series Card Reader

Brand:
Hikvision DS-K1102 Series card readers offer both RFID authentication and keypad-based PIN access. With MIFARE or EM support, RS-485/Wiegand interfaces, and IP64 protection, they are ideal for integrated, secure access control environments requiring dual-factor entry and tamper-proof protection.



Datasheet
Enquire Now
Categories: , , , ,
The Hikvision DS-K1102 Series enhances traditional access control by combining RFID card reading with keypad functionality for two-factor authentication. Compatible with both MIFARE and EM card technologies, the readers also support RS-485 and Wiegand (W26/W34) communications, offering integration flexibility for third-party systems.

Its compact build (132 mm × 92 mm × 20 mm) is enclosed in a robust PC+ABS shell with a stylish PMMA front panel and is IP64-rated for use in demanding environments. The keypad includes 12 keys (numeric + function) and allows users to authenticate using PIN codes, cards, or both for added security.
LED indicators and a built-in buzzer provide visual and auditory feedback during operation, while the device’s anti-tamper mechanism ensures physical security. With wide operating temperatures (-20°C to +65°C) and low power consumption (≤2W @ 12VDC), it’s ideal for a variety of indoor/outdoor access control installations.
CE and FCC certified, the DS-K1102 Series is particularly suited for offices, industrial zones, and high-security entrances, offering flexibility, durability, and dual-mode access control in a single compact unit.
