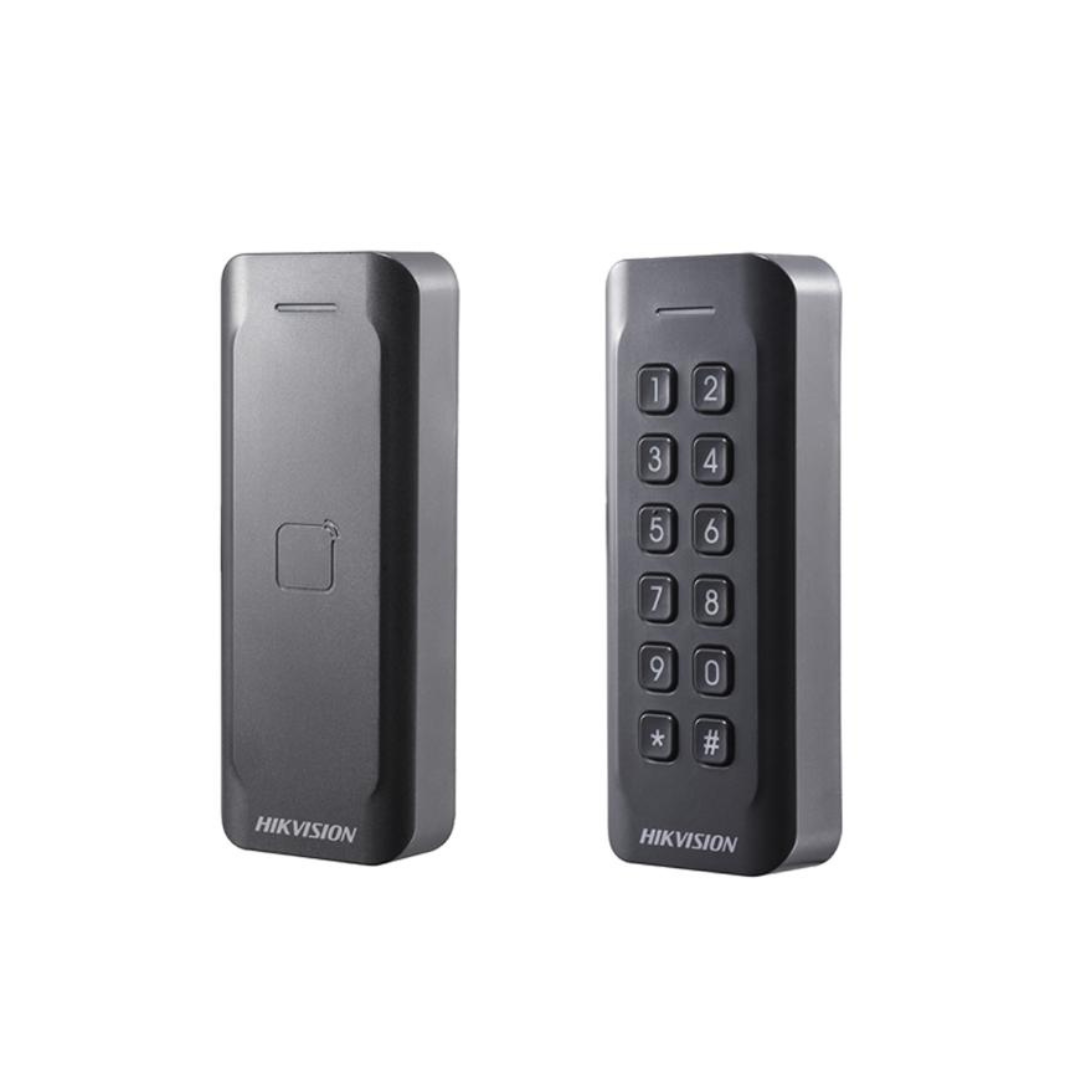

Hikvision DS-K1802 Series Card Reader

Brand:
Hikvision DS-K1802 Series is an EM card reader in the Eco Series, providing cost-effective access control. With IP64-rated housing, RS-485/Wiegand support, tamper alerts, and LED/buzzer status indicators, it’s ideal for secure, budget-friendly installations across indoor and semi-outdoor settings.



Datasheet
Enquire Now
Categories: , , , ,
The Hikvision DS-K1802 Series offers a value-driven access control solution using EM card technology. As part of the Eco Series, this card reader is engineered for simplicity, security, and efficiency in low-to-mid tier commercial and institutional applications.

With support for RS-485 and Wiegand (W26/W34) interfaces, it integrates effortlessly into Hikvision or third-party control systems. Its rugged yet compact design provides IP64-rated protection against dust and splashes, making it suitable for installation in both indoor and semi-outdoor environments.
Users benefit from LED indicators and a built-in buzzer that give clear feedback during the authentication process. It also includes anti-tamper functionality to prevent unauthorized tampering or dismounting. Operating between -20°C and +65°C and drawing minimal power (≤2W @12VDC), the DS-K1802 performs reliably even under variable environmental conditions.
Measuring just 116 × 44 × 20 mm, this reader is easy to mount and ideal for door frames, gates, and turnstiles. It is CE/FCC compliant and fits perfectly into projects where quality and cost efficiency must go hand in hand. For projects needing EM technology on a budget, the DS-K1802 is a practical and trusted option.
