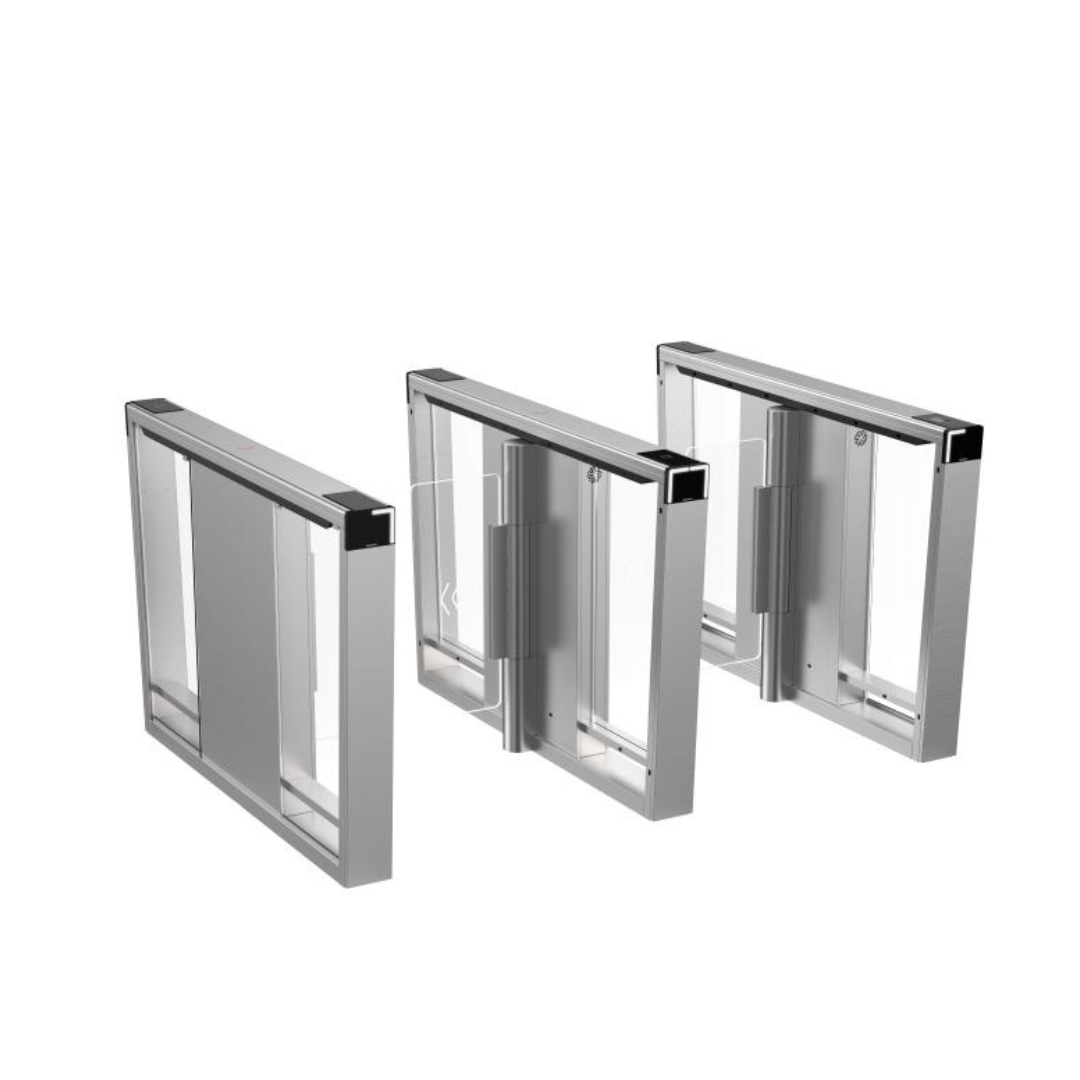

| The Hikvision DS‑K3B530X is a top-tier swing barrier designed for large-scale deployments such as smart buildings, high-end residences, hotels, and public venues. With a maximum throughput of 60 persons per minute, it ensures controlled flow with minimal latency.
Premium features include: 14 IR light beams prevent tailgating; LED directs users; timeout passage cancels auth Large credential capacity: up to 700K cards and 700K event logs; supports EM/M1/DESfire/Felica cards, face, and QR auth Servo motor with MCBF ≥12 million cycles ensures durability Automatic arm unlock on fire alarm/power failure; IPX4 water protection; operates –20 °C to 65 °C Integration & connectivity: Ethernet TCP/IP, optional Wi‑Fi in AP mode, ISAPI, RS‑485/232, 2 lock outputs, 2 exit buttons, 2 alarm outputs Optional add-ons: built-in controller, speaker, supercapacitor, remote keyfob, and various lane and wing configurations With sleek SUS304 + acrylic or tempered glass wings and robust certifications, the DS‑K3B530X delivers performance, security, and aesthetic integration into premium environments. |
Hikvision DS‑K3B530(L)X Series – Pro Swing Barrier
| The DS‑K3B530X series delivers a high-end swing barrier with 14 IR anti-tailgating beams, LED direction guidance, and configurable lane widths (550–1100 mm). It supports face, card (EM/M1/DESfire/Felica), and QR auth with up to 700,000 card capacity and event logs. Built for 30–60 ppm throughput, IPX4-rated, and network-ready via TCP/IP, RS‑485/232, and ISAPI protocol. Speaker and keyfob available.
|
