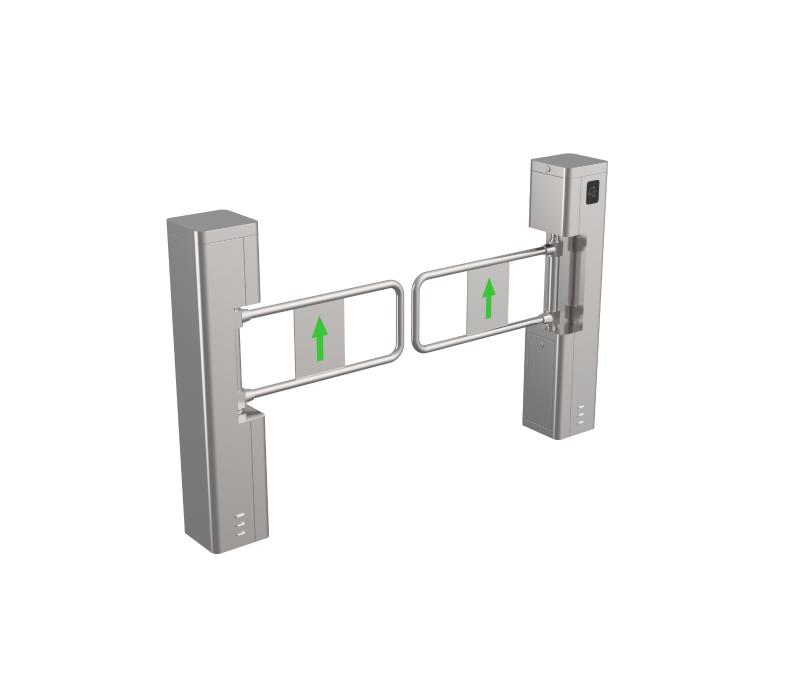

| The DS‑K3BC411‑RS/M‑Dm90 from Hikvision is a high-durability, wide single swing gate designed for indoor access control in busy environments. With a generous 900 mm lane width, it accommodates wheelchairs, stretchers, or bulky items, while still maintaining a throughput of up to 60 persons per minute depending on traffic volume
Built with SUS304 stainless steel and a robust brush motor system rated for 3 million cycles (MCBF), the gate withstands constant use while preserving a sleek profile MIFARE card authentication allows fast, secure credential verification; infrared sensors ensure safe operation, while automatic panic functionality allows free swing in response to alarm signals or power outages—a must for regulatory safety standards Operating on 100–240 VAC and within a temperature range of –10 °C to +45 °C with 10–95 % humidity (non-condensing), the gate is well-suited for hospital wings, VIP lounges, hotel lobbies, and high-capacity offices. Physical dimensions are 1200×200×1020 mm with a weight of 38 kg. Designed to integrate with RS‑485, Wiegand, RS‑232 interfaces, and external access control panels (e.g. DS‑K2602T), it supports intelligent pass control with configurable timing, tamper detection, and optional remote setup. The DS‑K3BC411‑RS/M‑Dm90 merges wide usability, secure access, and safety features in a refined single-gate solution. |
