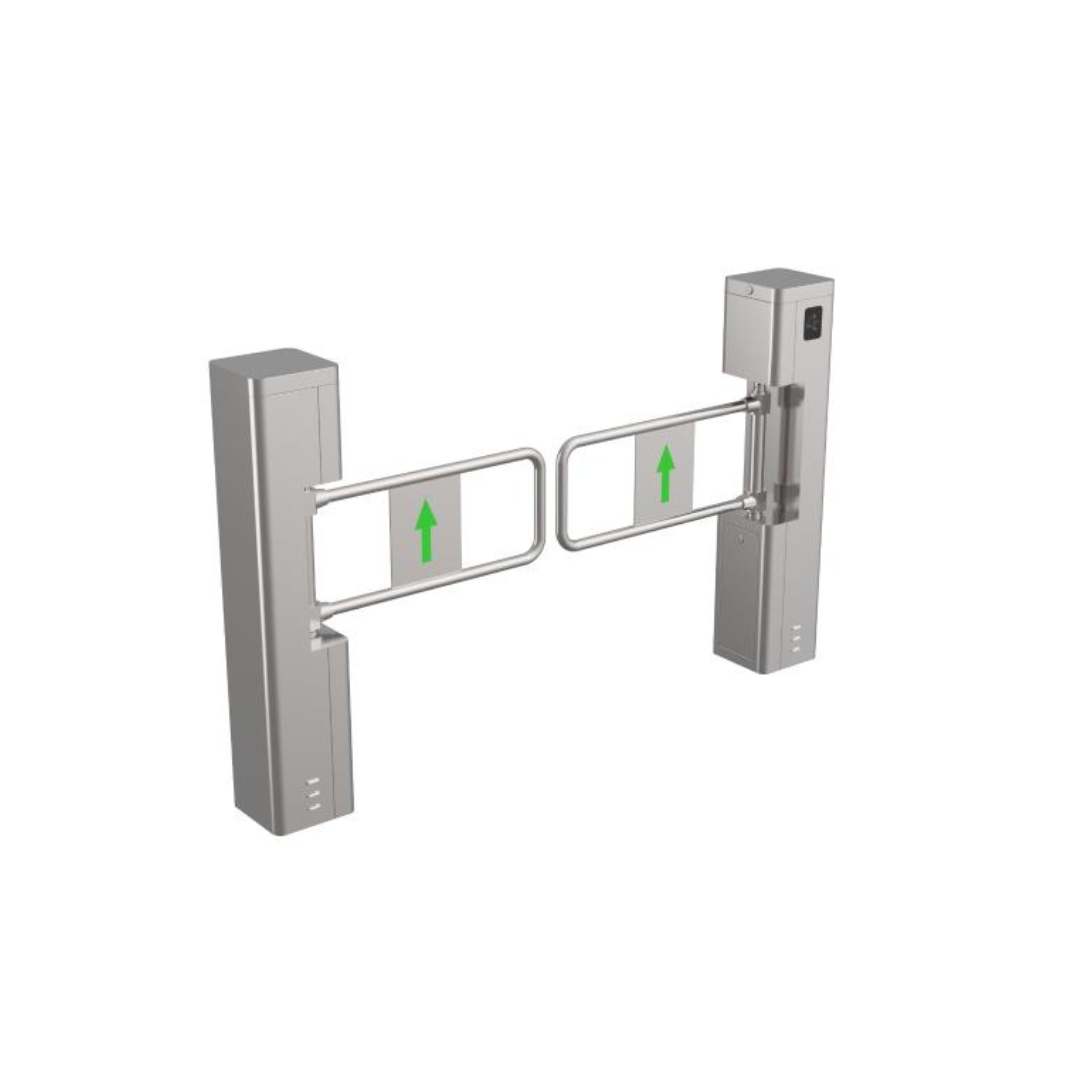

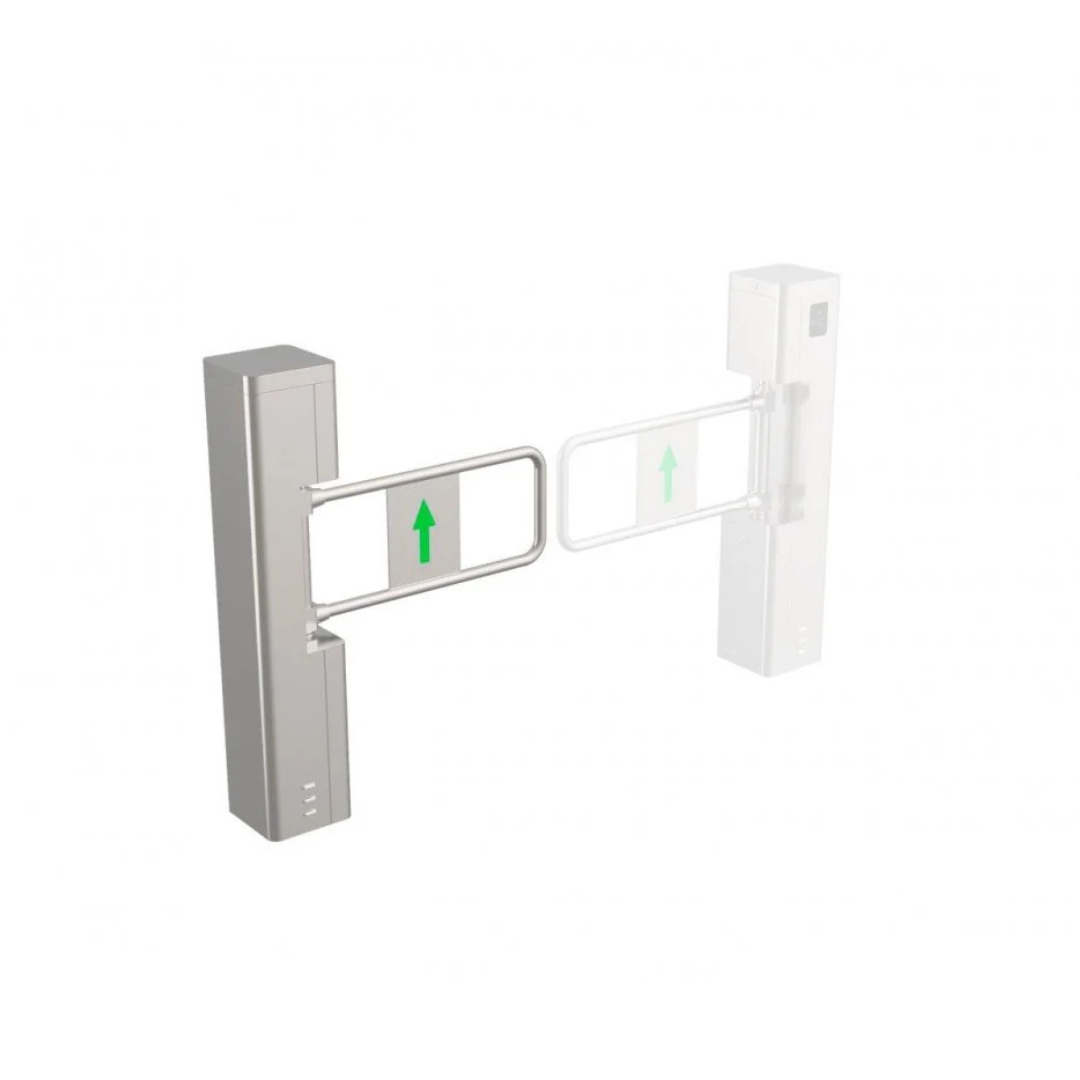

| Hikvision’s DS‑K3BC411‑RS/M‑Dp60 single-mode swing gate combines sleek design with reliable access control in indoor environments. With a brushed motor rated for over 3 million cycles (MCBF), this gate offers smooth operation and long-term durability
Configured with a standard 600 mm lane width, the gate handles 20–60 persons per minute depending on traffic behavior Constructed from SUS304 stainless steel and finished with a 1.2 mm thickness barrier, the gate offers both robustness and aesthetic appeal MIFARE card authentication (EM/M1) provides secure credential handling, with integrated RFID reader for seamless access. In emergency or fire situations, the barrier automatically opens, and during power failures the swing arm relaxes to allow unrestricted movement—ensuring safety compliance Electrical specs include 100–240 VAC power supply and a working range of –10 °C to 45 °C with 10–95 % non-condensing humidity . With dimensions of 1200×200×1020 mm and weight of 35–38 kg, it integrates seamlessly into corporate entrances, clinic lobbies, or education facilities. The system supports adjustable pass durations and includes infrared sensors, RS-485/Wiegand output, and optional wall-mounted controllers for advanced access control. Ideal for standalone installations or integrated SCADA, this gate balances performance, safety, and a slim footprint. |
