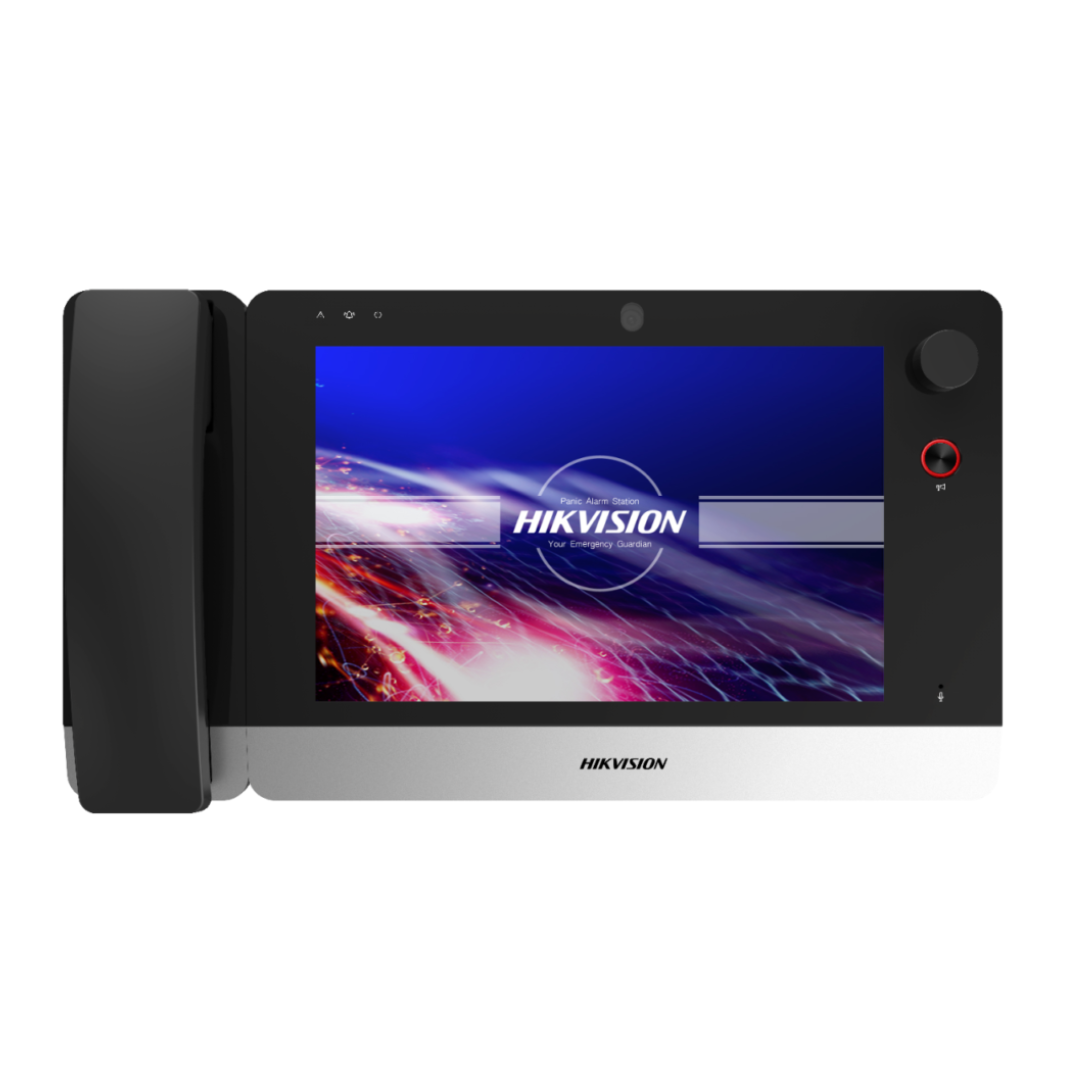

The Hikvision DS‑PEA4L‑7 Master Station is a central controller for networked panic alarm systems in public, commercial, and institutional environments. With its 7capacitive touchscreen, the unit delivers intuitive command over connected panic alarm stations ideal for campuses, corporate complexes, or hospitals.
It can manage up to 256 subordinate alarm stations and supports:
Real-time alarm handling, call logging, and broadcast capability
Two-way voice intercom through headset and built-in speaker/mic
Video display output via VGA and HDMI for real-time alarm display on large monitors
Local storage via MicroSD (up to 128 GB) for logs and recordings
Call queue, forwarding, and group call features
Multiple interfaces: USB, RS-485, Ethernet (dual 10/100/1000 Mbps)
Protocols supported: TCP/IP, SIP-HIK, RTSP, ONVIF
Power: 12V DC, 10W; Operating temperature: ?10?C to +50?C
Compact (436 ? 215 ? 67 mm) and durable, the DSPEA4L7 ensures full control over emergency audio/video communication across a distributed panic system.
