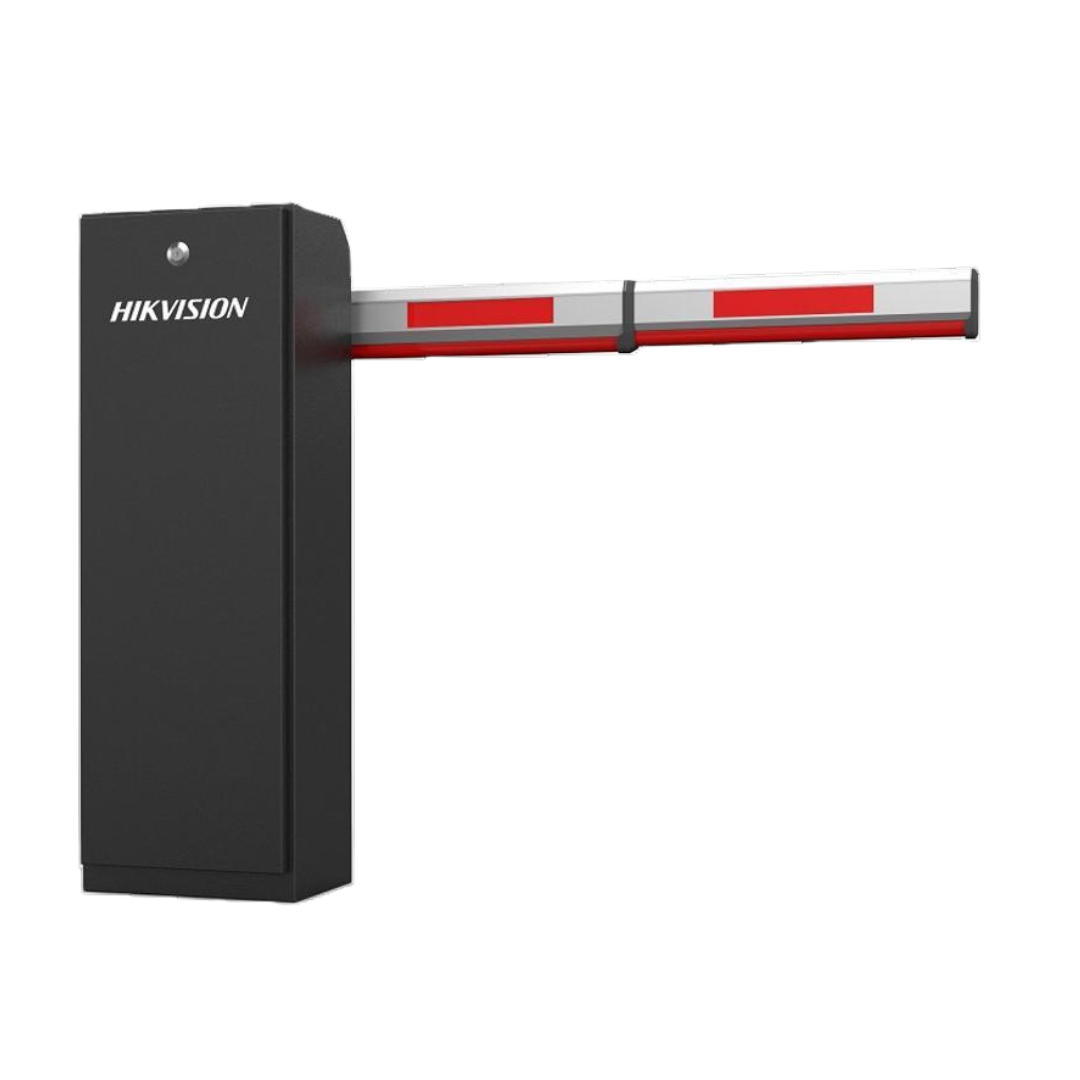

Hikvision DS-TMG4B0-LA(6m) Boom Barrier

Name: Hikvision DS‑TMG4B0‑LA 6 m Boom Gate
Brand: Hikvision
Availability: InStock

The 6 m DS‑TMG4B0‑LA includes a telescopic aluminium boom, lifting in about 6 seconds. Retains all premium features: CRS steel build, handwheel/manual controls, contactless sensors, -30–70 °C range, IP54, and a 430 MHz remote. Designed for wide entrances like campuses and commercial driveways.

Datasheet

Categories: Access Control, Hikvision Access Control, Hikvision Access Control Systems, Hikvision Barrier Gates, Hikvision Boom Barriers, Hikvision Value Series Boom Barriers

Description

The 6 m variant of DS‑TMG4B0‑LA adds a telescopic boom to cover wider lanes, with 6-second rise/fall times

sourcesecurity.com
. Incorporating CRS housing, IP54 rating, and motorized handwheel with manual override, it offers reliable performance even during power drops . Contactless monitoring, IR/loop-sensor compatibility, and 430 MHz remote support feature-rich operations

. Rated for -30 °C to 70 °C climates and ≤ 90 % humidity; accepts 60 W supply

Mechanically designed for longevity—2.5 million cycles and 7,200/day duty—this barrier is ideal for high-traffic sites like campuses and logistic hubs . Dimensions and weight align with other models: 355 × 245 × 1,035 mm and 41 kg.
