| The Hikvision DS‑K3B801SX Ultra Swing Barrier delivers high-end access control for upscale environments like corporate lobbies, banks, and smart buildings. Constructed with durable SUS304 bases and acrylic wings, it provides a seamless blend of aesthetics and security. With 24 IR light beams, it blocks tailgating effectively while LED direction indicators and audible alerts enhance UX.
Key specifications: Throughput: 30–60 persons/min, servo motor with MCBF ≥6 million cycles Authentication modes: Card/fingerprint/face/QR; 60 k card templates, 5 k fingerprint, 180 k event logs Physical features: Lane widths 550–1100 mm; acrylic wings; RS‑485 ×2, RS‑232 ×2, IO ports, network Safety: Auto-opening barriers during fire or power failure; tamper detection Power: 100–240 VAC; IPX4 indoor rating; –10 °C to 55 °C operational range Dimensions & weight: ~150 kg per pedestal; packaged size 1688×348×1318 mm With modular configurations (left/right/centre), remote controller support, and premium build quality, the DS‑K3B801SX elevates secure, high-performance access. |

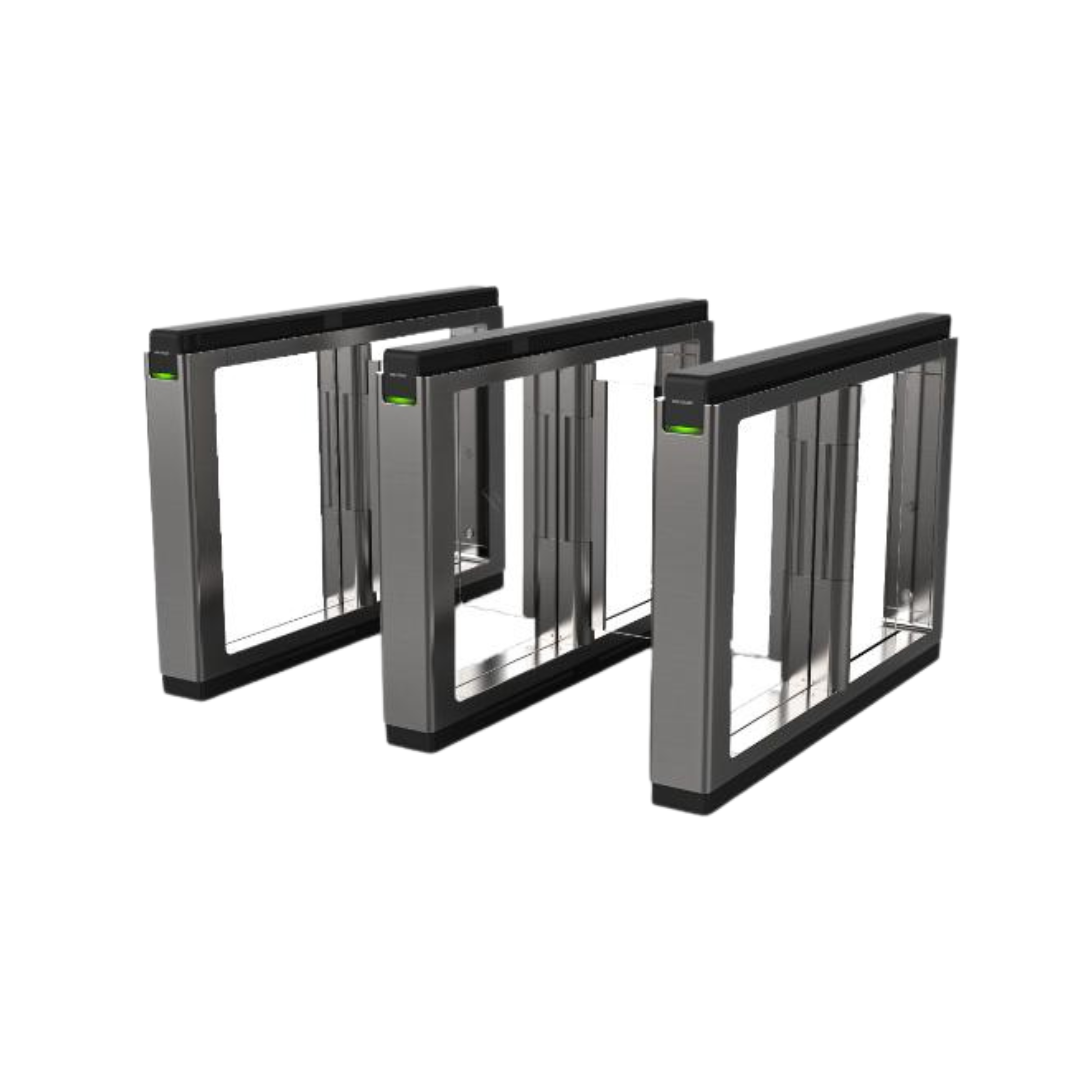

Hikvision DS‑K3B801SX Series – Ultra Swing Barrier
Brand:
| The DS‑K3B801SX is an ultra-class swing barrier featuring acrylic barrier wings, 24 IR anti-tailgating beams, servo motor with ≥6 million cycle lifespan, and throughput of 30–60 ppm. It supports card/face/finger/QR auth, 60 k card capacity & 180 k event logs, RS‑485/232, network, IO ports, and auto-open arms on fire alarm/power loss. Ideal for premium access points.
|
